SAN FILTER

2021-02-16 18:32:21 ใน งานบริการ »

1208

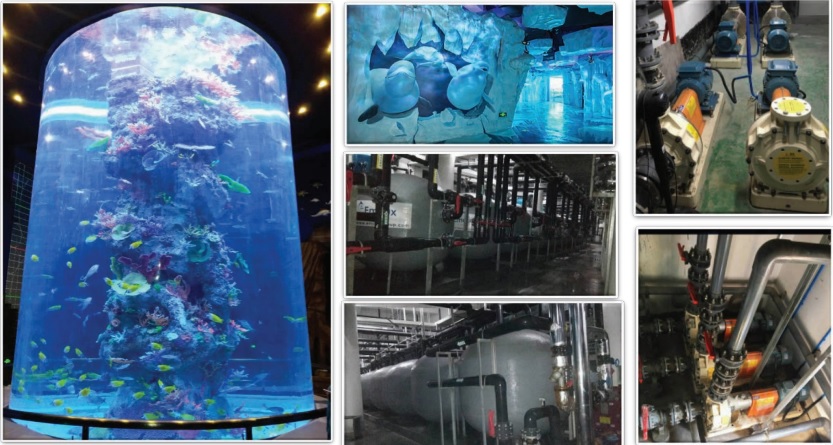

HAINAN ATLANTIS SANYA

Country: Sanya, China Year: 2018
Equipment: Sand Filter, Denitrification Filter, Protein Skimmer,Ozone Contact Chamber, GAC Filter, Pump

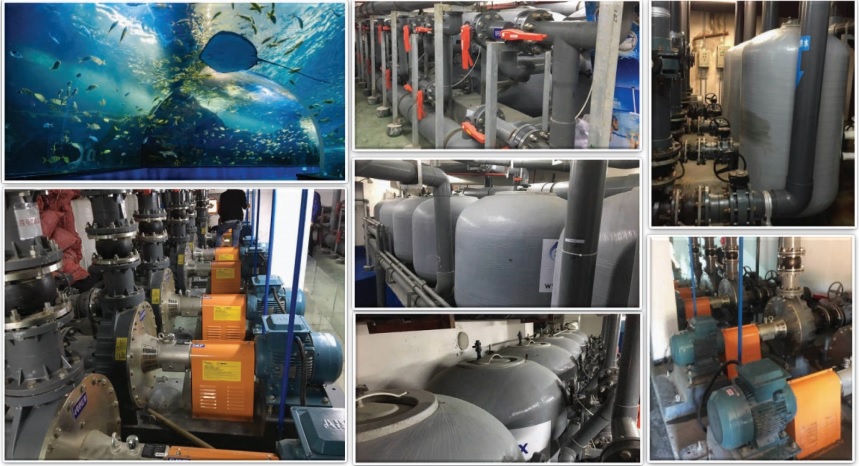

ZHUHAI CHIMELONG OCEAN KINGDOM

Country: Zhuhai, China Year: 2013
Equipment: Sand Filter, Denitrification Filter, GAC Filter, Ozone Contact Chamber,Pump, ProteinSkimmer, Dosing System

HONG KONG OCEAN PARK

Country: Hong Kong, China Year: 2013-2015
Equipment: Sand Filter, Ozone Contact Tank, Foam Fractionator

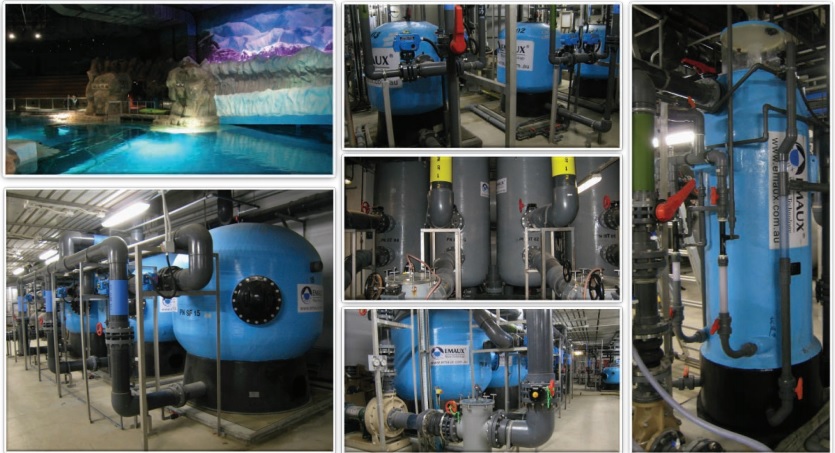

CAIRNS AQUARIUM

Country: Cairns,Australia Year: 2018
Equipment: Sand Filter, Protein Skimmer, Bag Filter, GAC Filter, Ozone Contact Tank

CHONGQING ANDOVER OCEAN PARK

Country: Chongqing, China Year: 2017
Equipment: Sand Filter, Denitrification Filter, GAC Filter, Pump

HUNAN YIYANG HONEY BAY

Country: Hunan, China Year: 2017
Equipment: Sand Filter, Pump

WUHU MACROLINK BELUGA OCEAN PARK

Country: Wuhu, China Year: 2016
Equipment: Sand Filter, Pump

SHANDONG RIZHAO OCEAN PARK

Country: Shandong, China Year: 2018
Equipment: Sand Filter, Ozone Contact Chamber, GAC Filter, Pump

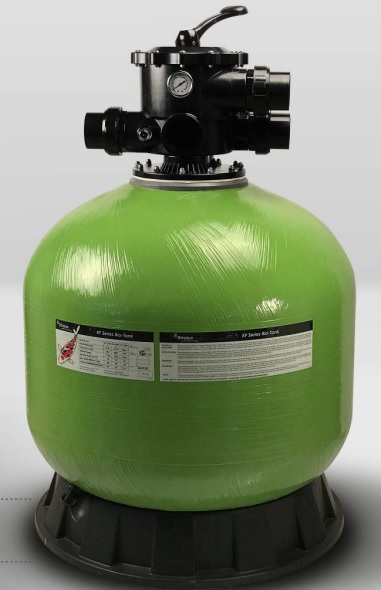

Life Series Aquaculture Filter

EXCLUSIVE FILTRATION AND BACKWASH RESULT
For koi pond, aquaculture, and aquarium

Bobbin-wound reinforced fiberglass tank

Max Operating Pressure
36psi (2.5bar)
Max Temperature
43°C (109°F)
Suggested Media
Biological Media

Pool & Spa Equipment

Biological Filtration System is environmentally friendly
with good filtration and backwash performance. It solves the traditional problems of sand
agglomeration in the tank. Designed not only with a modern appearance, but it also
significantly reduces the size of the filtration system compared to traditional installations.

About Biological Filtration
Biological filtration takes place when the beneficial
bacteria breed inside the special filtration media in the
tank. These bacteria efficiently convert the ammonia to
nitrites, and then to less harmful nitrates.

About Physical Filtration
When water passes through the filter tank, large
particles are trapped by the biological filter media. The
small particles are also blocked by the linked biological
filter media. After certain period of time, those particles
accumulate and the pressure inside the tank increases.
The particles can be cleared and the pressure released
by backwashing the tank.

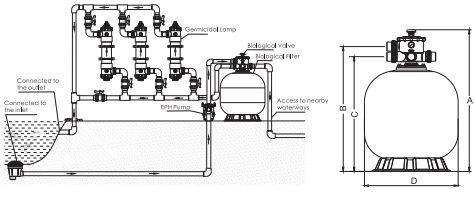

Typical Installation

Product Information and Dimensions:

Emaux Bio-ring media is included with each filter

Code	Model	Pond Volume(m3)	Valve Connection	Max Flow Rate	Biological media(kg)	A mm	B mm	C mm	D mm
88015966	LF700	30	2.5” / 75mm	230lpm 14m3/h	30	1126	1030	933	723
88015967	LF800	40	2.5” / 75mm	300lpm 18m3/h	45	1234	1155	1058	800
88015968	LF900	50	2.5” / 75mm	350lpm 21m3/h	60	1334	1242	1145	900

FOS Series UV-C Disinfection System

ACHIEVE UP TO 98% STERILIZATION RATE
Specialized for fish aquarium and aquaculture

CONTROL FISH POND INFECTION AND DISEASES

FOS series UV-C disinfection system is an effective product to kill
bacteria and other microbes that pass through from the tube as a
result to maintain bacteria-free and purified water in your fish pond.
1. High-quality UV-C lamp which can achieve 98% sterilization rate
2. The durable UV-C lamp has a long lifespan, more than 10,000 hours
3. High-quality quartz tube provides more than 99% transmittance rate

Product Features

1. Adjustable brackets for simpler and flexible installation
2. Available in 50Hz or 60Hz with 220V
3. Four models 15W, 25W, 30W and 55W are suitable for fish pond sized up to 14m³

Specification

Code	Model	Flow rate (m3/h)	Fish Pond (m3)	Input Power (W)	Connection
88046317	FOS-UV-5T	14.4	5	15	1.5”/ 50mm or 2” / 63mm
88046318	FOS-UV-7T	14.4	7	25	1.5”/ 50mm or 2” / 63mm
88046319	FOS-UV-8T	14.4	8	30	1.5”/ 50mm or 2” / 63mm
88046320	FOS-UV-14T	14.4	14	55	1.5”/ 50mm or 2” / 63mm

Product Dimension

Code	A (mm)	B (mm)	C (mm)	D (mm)
FOS-UV-5T	694	431	180	166
FOS-UV-7T	694	431	180	166
FOS-UV-8T	1144	881	180	166
FOS-UV-14T	1144	881	180	166
