Commercial Filters




MEET HIGHEST DEMANDS

Custom-Built Service Available


Innovative and Enterprising


Emaux is a recognized global manufacturer that meets and surpasses customers’ expectations customers for best-in-class products and services. For over 38 years, we have been actively engaged worldwide in key water projects, working closely with industrial consultants, developers, and engineers. The proven performance of our manufacturing systems makes us the ideal partner for customers seeking a robust water solution to enrich their leisure living and professional experience.

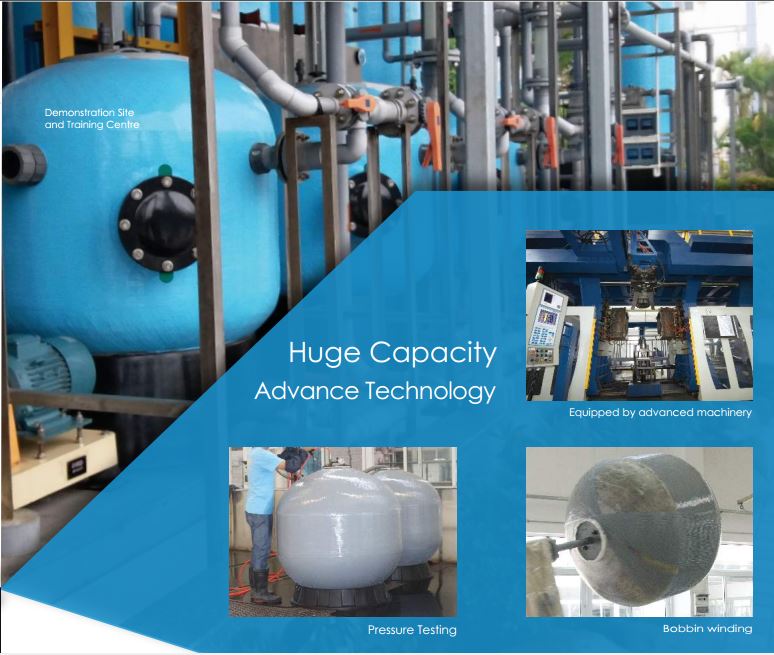

Large Production Centre


Headquartered in Hong Kong and Europe, our state-of-the-art 80,000m2 production facility in Zhong Shan, China, enables us to serve local and global markets with advanced efficiency.Our R&D team actively pursues breakthroughs in product innovation and OEM production leveraging know-how in mechanics, automat ics, electronics, hydraulics, and plumbing. Automated manufacturing procesess employ the most advanced technologies in mould making, plastic blow moulding, plastic injection, fibreglass production, electronic controls, and assembly. Flexible one-stop solutions are provided to meet every need for water treatment and water leisure.





We are your trustworthy water solution partner

Quality is at the heart of everything we do, without compromise on efficiency in order to ensure the best performance of our products under the most demanding environmental conditions. Our production facility is
ISO9001:2008 certified, and the most stringent international standards have been met for individual products, including UL, ETL and CSA (Canada and the U.S), TUV-GS and RoHS (Europe), SAA and C-Tick (Australia and New Zealand), CCC (China), and SASO (Saudi Arabia). Rigorous quality control processes are also in place to deliver consistent quality.


Because we regard quality as the life of enterprise, we have won long-term support and trust of our customer and business partners all over the world. We offer specialized products and custom-built services for :

* Swimming pools, commercial spa
* Aquatic centres, water parks,
* Aquaculture, aquariums,
* Water features and large water treatment systems.





Glass Fiber Reinforced Polyester (GRP)

Sand Filter

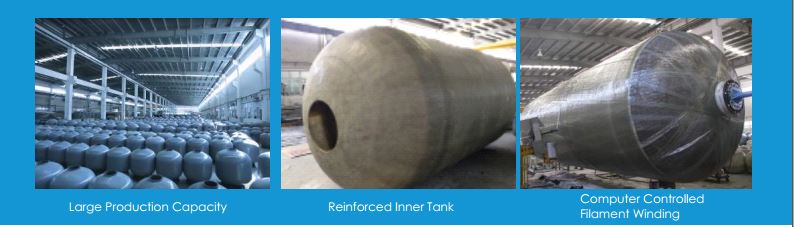

With the professional engineering experience and a large Glass Fiber Reinforced Polyester (GRP) production facility, Emaux is capable of designing and manufacturing a wide range of commercial sand filters constructed of a multiple-layer moulded structural inner layer and a continuous outer filament winding by computer controlled winding machines.

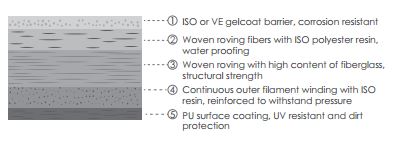

Multi-layer construction (from inner to outer):








Advantages:




The filter tank is manufactured of durable, non-corrosive fiberglass and resin, with automatic bobbin winding technology, UV resistant composites, which allow the filter to operate under extreme weather conditions.


Standard Features:

* Available with laterals or nozzle plate system for air scouring capabilities

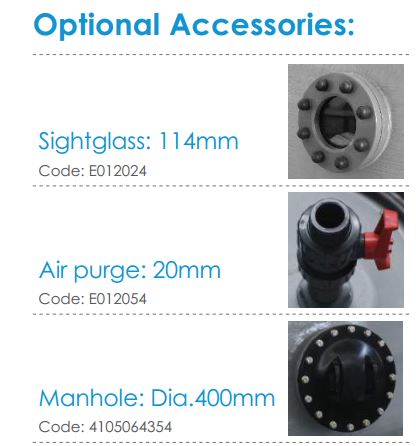

* Optional accessories includes sight glass, manhole, union drain, and air purge
* Dual/triple manifold distribution evenly increases the flow rate


Components :





* Stainless Steel parts are made of AISI 316 S.S. Plastic parts are in PVC and ABS
* Gasket or O-ring sealants are in EPDM or VITON material for ozone resistance




Custom-Built Service
Fit all projects’ needs!


Emaux offers a fully customized service from system design, dimensions, working pressure, connections, to internal and external finishing to meet your project needs. The products are designed and manufactured in
accordance with the latest international industry standards such as BS EN-13121, European Directive of Pressure Vessels 97/23/EC; and employ a quality assurance program that starts with confirmation and testing of raw materials right through all stages of the manufacture and final testing. Each sand filter is individually pressure tested and comes with its own factory test certificate, quality assurance record and serial number.

Standard Model:

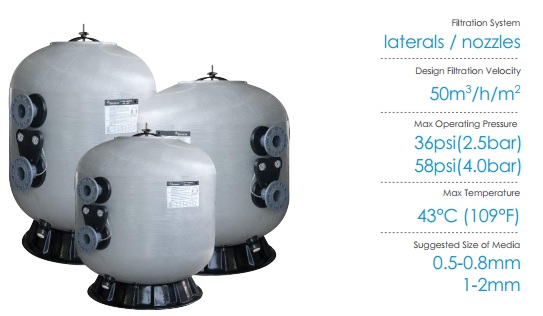

Commercial Filter NL SERIES E SERIES K SERIES






Excellent Performance with Deep Sand Bed!

Application Suggestions:

* Competition swimming pool
* Aquatic park and aquarium
* Commercial spa, fountain
* Water treatment plant

Product Features:

* Multi-construction layers: non-corrosive and chemical protective
* UV resistance, suitable for operation under prolonged sunlight
* High filtration standard with deep sand bed
* Bobbin wound fiberglass reinforcement with polyester resin
* Available with laterals or nozzle plate system for air scouring capabilities

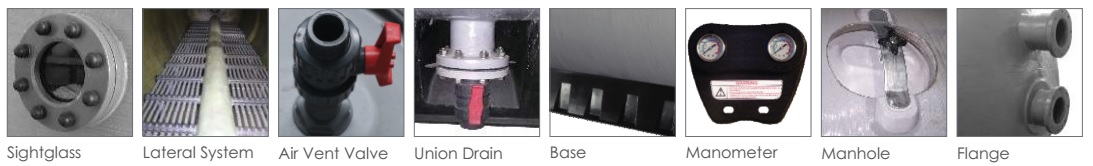

* Optional accessories includes sight glass, manhole, union drain, and air purge.





Laterals System:





Nozzle System:





Flange connection standard optional:
GB(HG20592 PN1.0MPa) or ANSI( ANSI B16.5(1988) Class150)

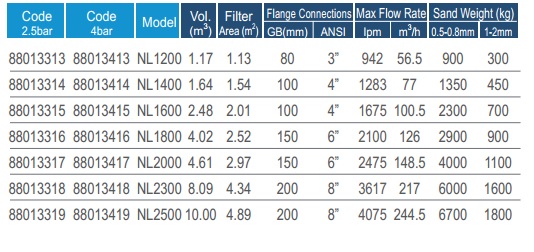

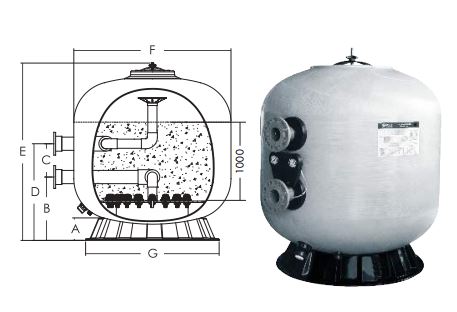

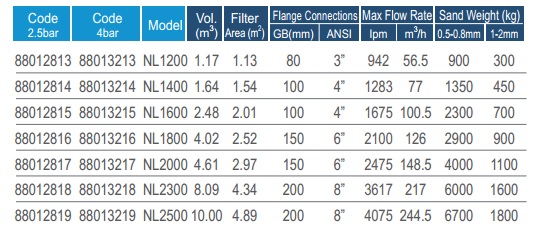

NL SERIES

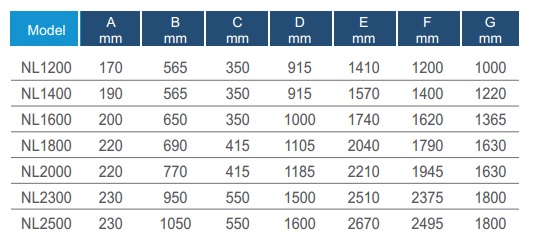

Product Dimensions:



With Laterals System:



With Nozzle System:

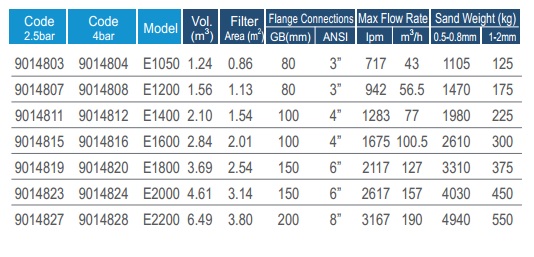

E SERIES

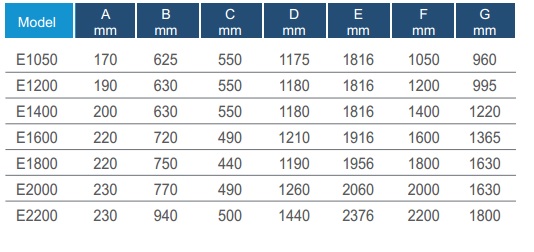

Product Dimensions:

With Laterals System:




With Nozzle System:

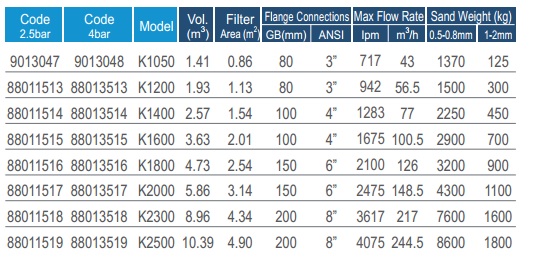

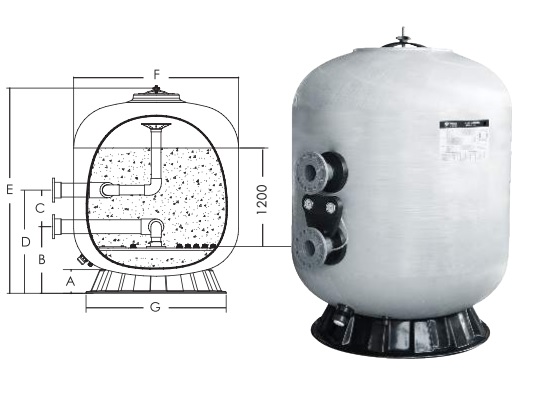

K SERIES

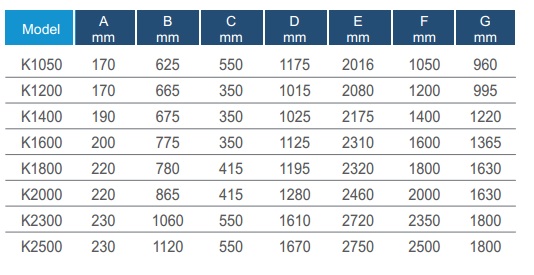

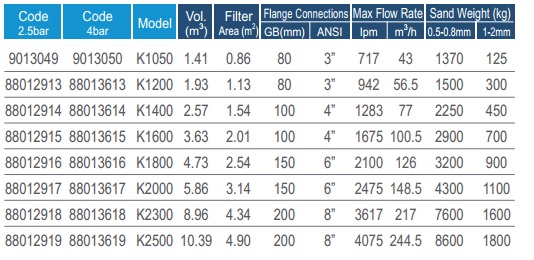

Product Dimensions:




With Laterals System:




With Nozzle System:

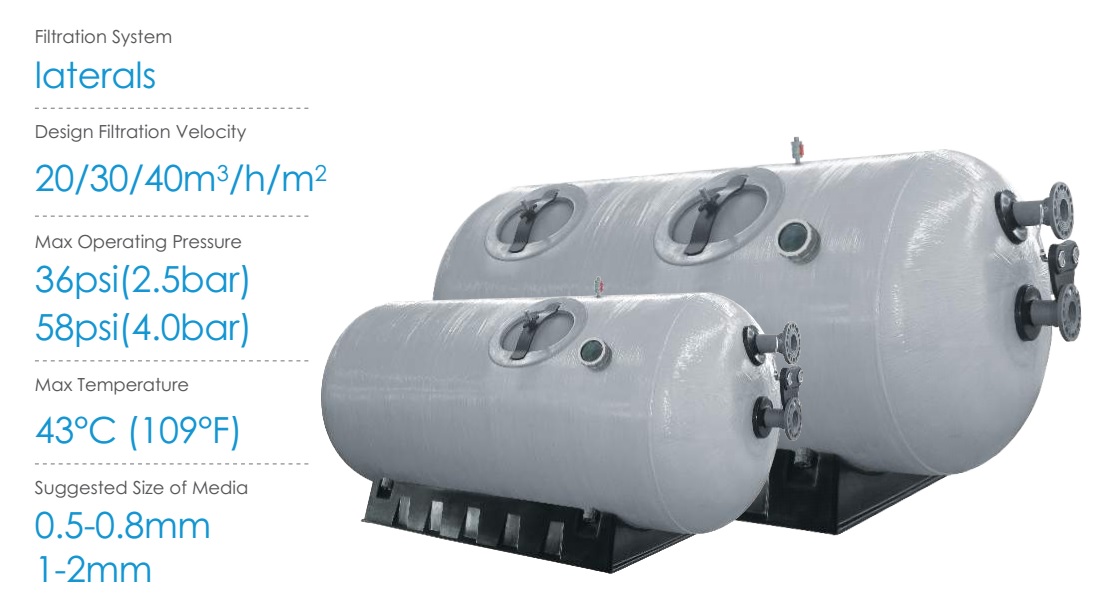

Commercial Filter
H SERIES






Long Service Life, High Filtration Surface

Application Suggestions:

​* Large scale water feature
Aquatic Park and Aquariu
* Commercial pool

Product Features:

* Multi-construction layers: non-corrosive and chemical protective
* UV resistance, suitable for operation under prolonged sunlight
* Inner filtration system with evenly spread laterals enhances filtration performance.
* Bobbin wound fiberglass reinforcement with polyester resin
* Service manhole for easy maintenance
* Equipped with manometer for easy reading of the workingpressure of both inlet and outlet.

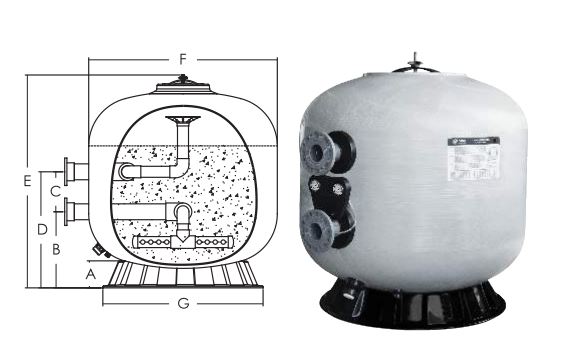

H SERIES

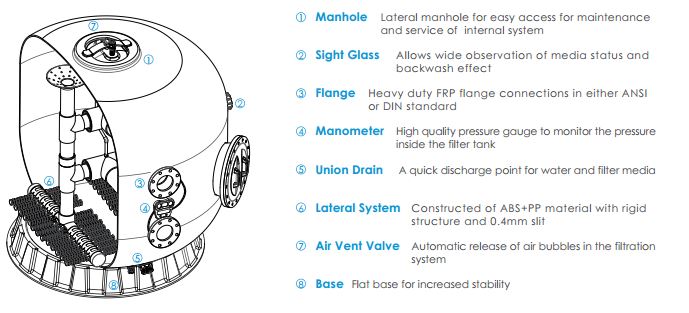

Diagrams:

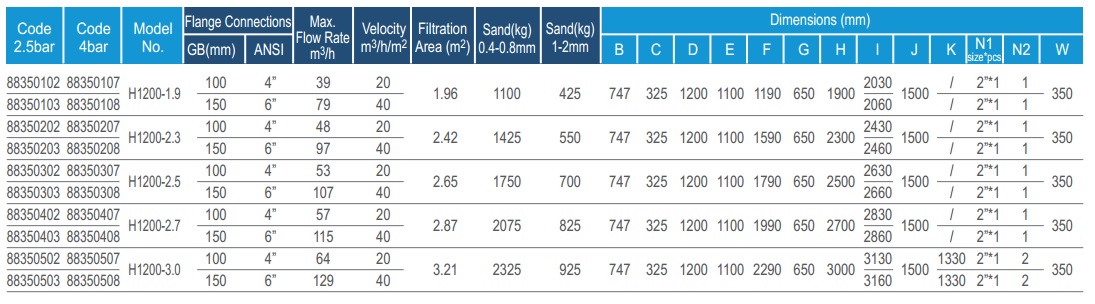

Technical Information and Product Dimensions:
Diameter: 1200mm / Sand bed depth: 0.6m

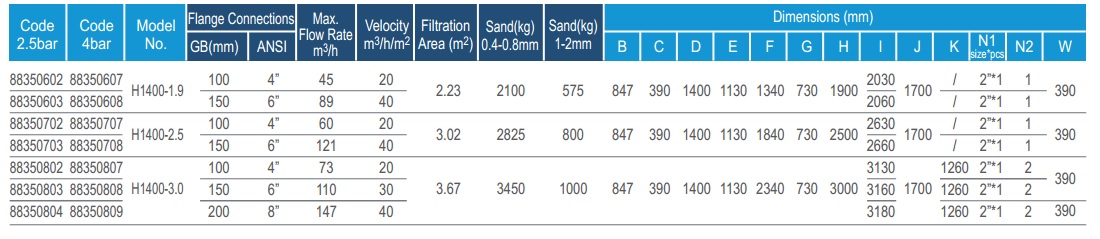

Technical Information and Product Dimensions:
Diameter: 1400mm / Sand bed depth: 0.8m

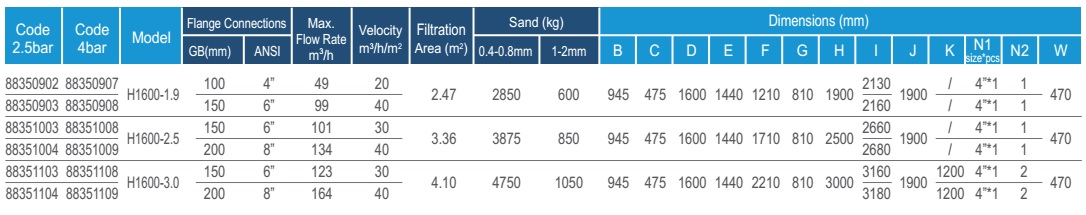

Technical Information and Product Dimensions:
Diameter: 1600mm / Sand bed depth: 1.0m

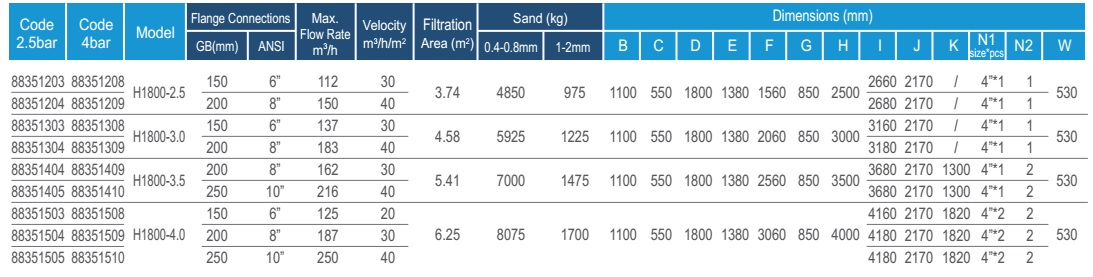

Technical Information and Product Dimensions:
Diameter: 1800mm / Sand bed depth: 1.0m

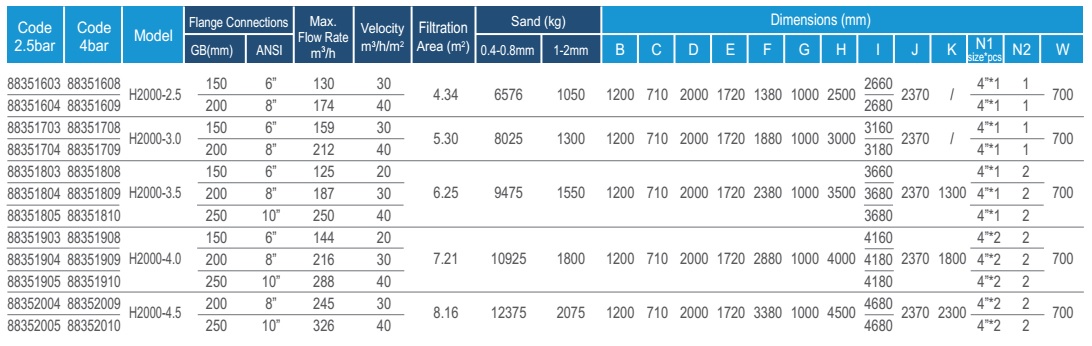

Technical Information and Product Dimensions:
Diameter: 2000mm / Sand bed depth: 1.2m






Product Focuses:

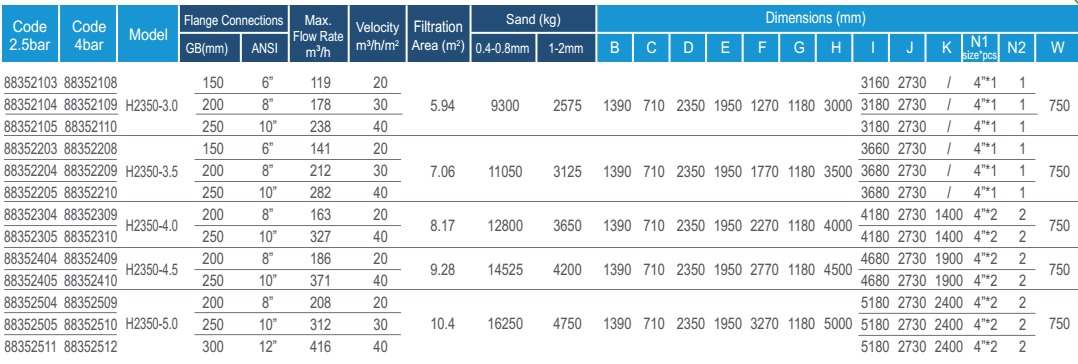

Technical Information and Product Dimensions:
Diameter: 2350mm / Sand bed depth: 1.2m

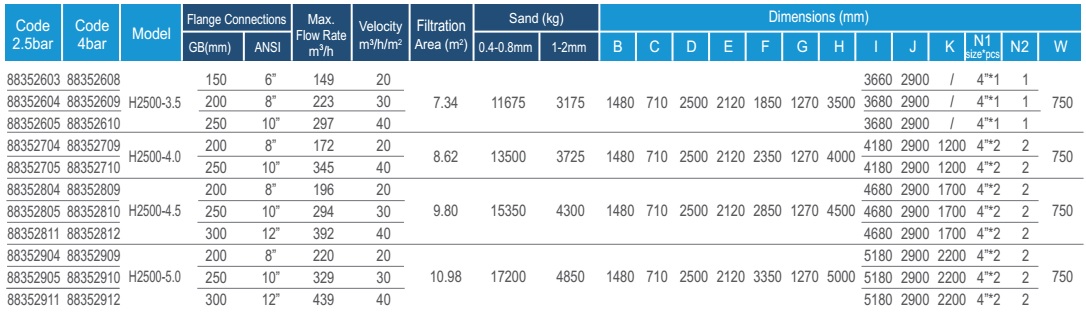

Technical Information and Product Dimensions:
Diameter: 2500mm / Sand bed depth: 1.3m

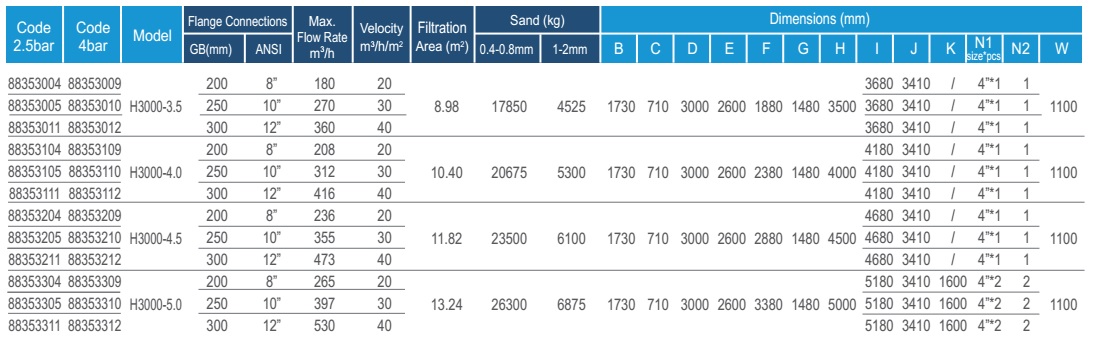

Technical Information and Product Dimensions:
Diameter: 3000mm / Sand bed depth: 1.5m

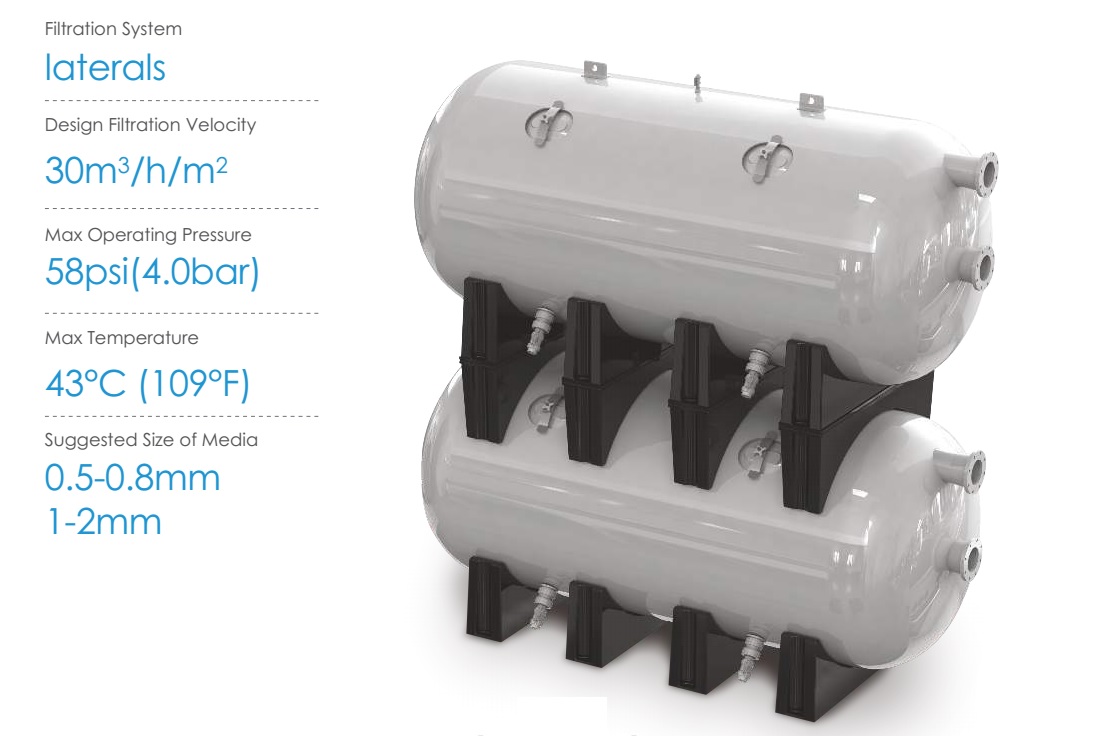

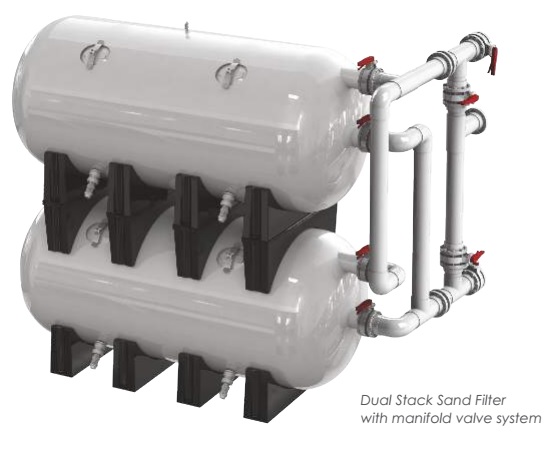

Dual Stack Sand Filters




For aquarium and large scale waterland







Demand
Minimal Footprint

The Emaux Dual Stack Sand Filter is engineered to the highest strength and durability. The filter is built to maximize long term performance to resist structural failures caused by corrosion and pressure. It offers a vertically stacked design that doubles the filtration capacity for the same footprint. The Dual Stack Sand Filter is ideal for high-load or high-flow of water facilities such as public pools and water parks.

Product Features:

1. Minimizes the floor space for installation
2. Integral base design and self-supportingstackable structure
3. Available in a complete system usingEmaux manifold valve systems
4. Optional Vinyl Ester coating maximizescorrosion resistance against saltwaterand all kind of pool chemicals including ozone.


Technical Information and Product Dimensions:




Flange connection standard optional: GB(HG20592 PN1.0MPa) or ANSI( ANSI B16.5(1988) Class150)

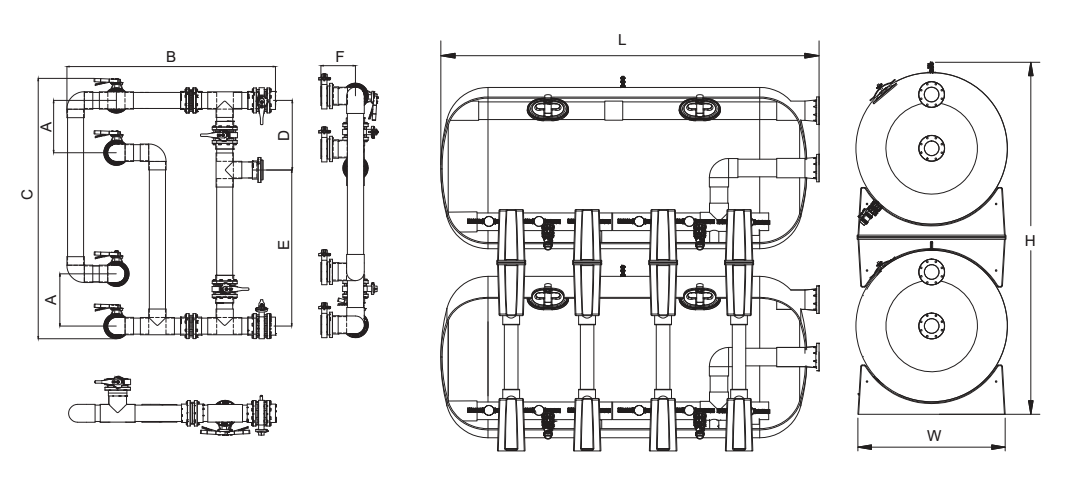

Butterfly Valve Dimensions:

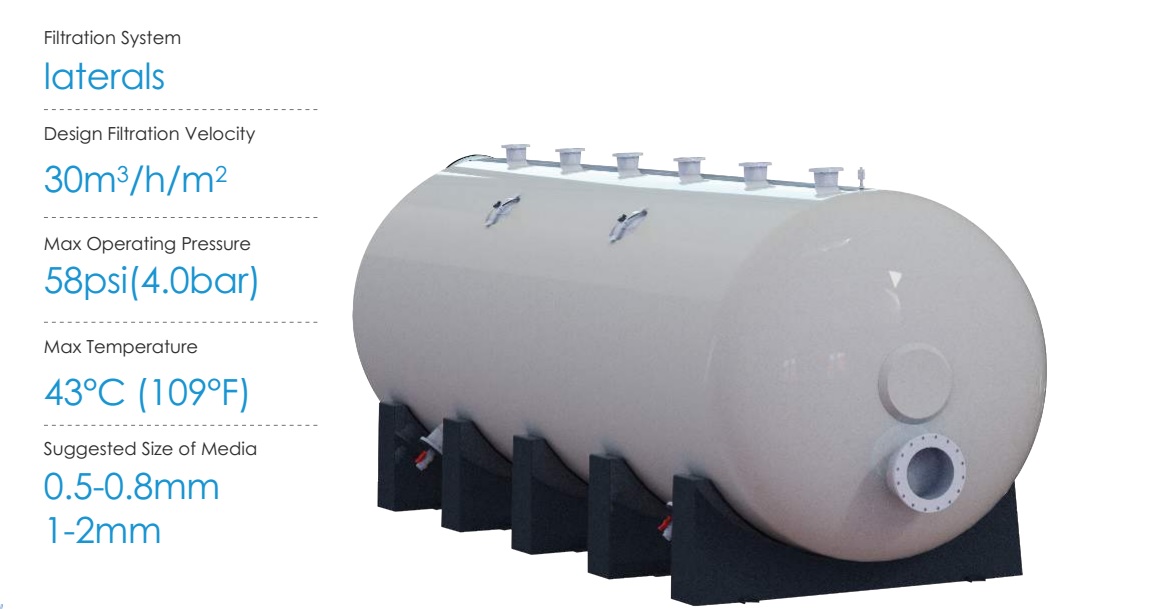

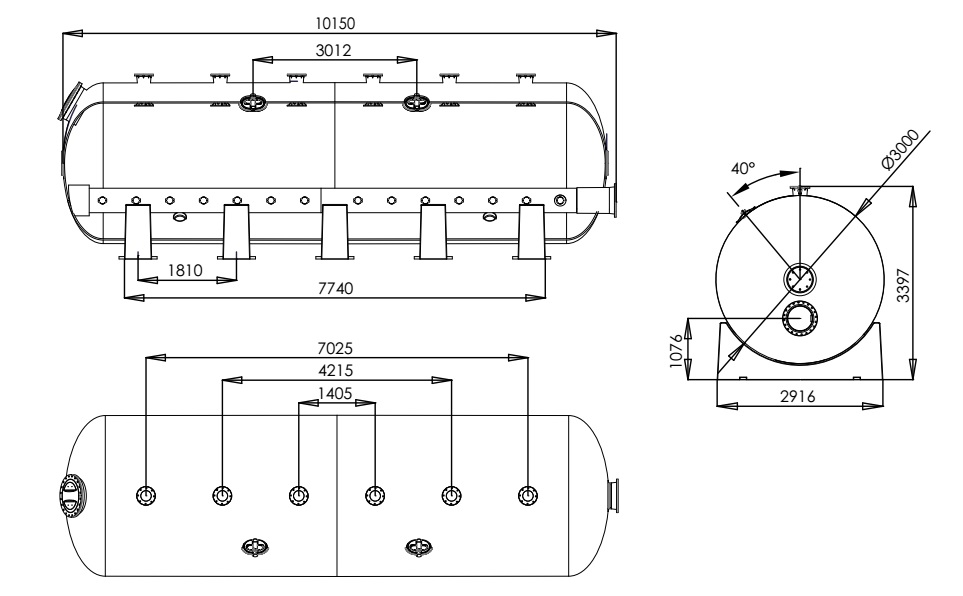

Large Size Horizontal Sand Filter





Horizontal GIANT!
Custom-Built Available

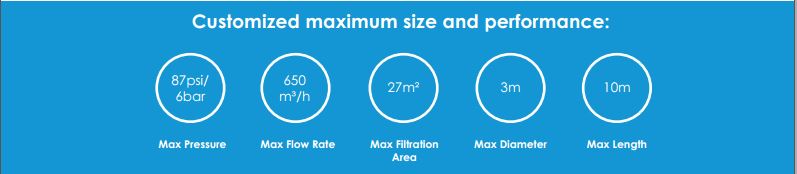

Horizontal sand filter provides a larger filtration area for installation space optimization. Emaux manufactures horizontal sand filter up to 3 meters in diameter and 10 meters in length. Emaux is also able to build to individual project requirements. Dimensions can be modified according to project specifications.


Applications Suggestions:

* Aquarium
* Large Scale Waterland

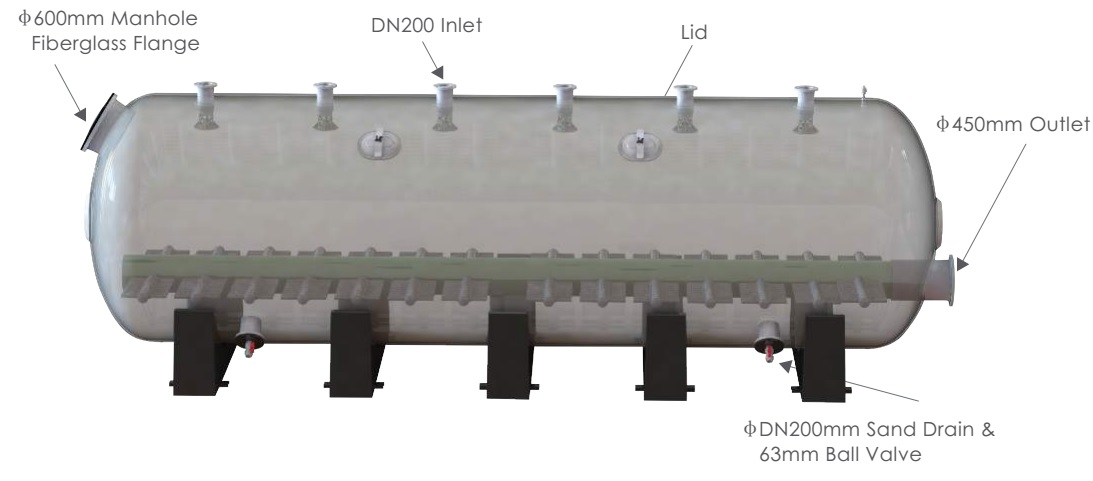

Typical Specification Guideline
